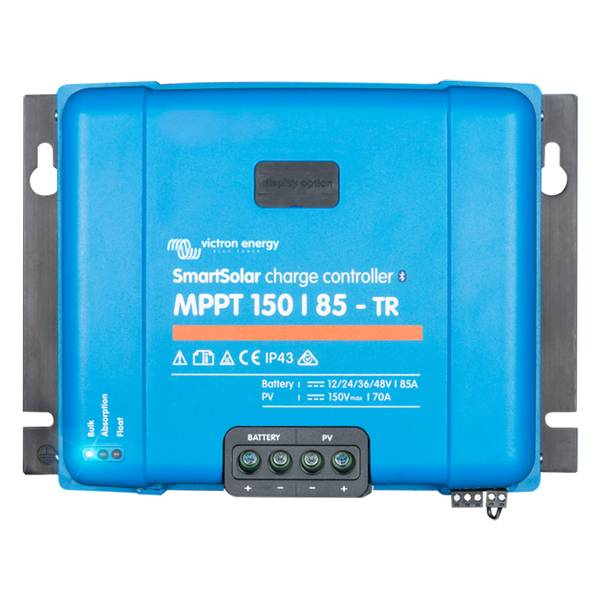

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
Optional SmartSolar Control Display
An optional Pluggable LCD display control provides live-data, set-up and management, straight from the face of the device.
Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Programmable relay
Can be programmed to trip on an alarm, or other events.
Battery charge voltage: 12/24/48V Auto Select (software tool needed to select 36V)
Rated charge current – 85A
Weight – 4,5 kg
Dimensions (hxwxd, mm) – 246 x 295 x 103
