Massive performance extension
Besides parallel operation, three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallelly to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model)
PowerControl – operation with limited generator performance, shore or grid power

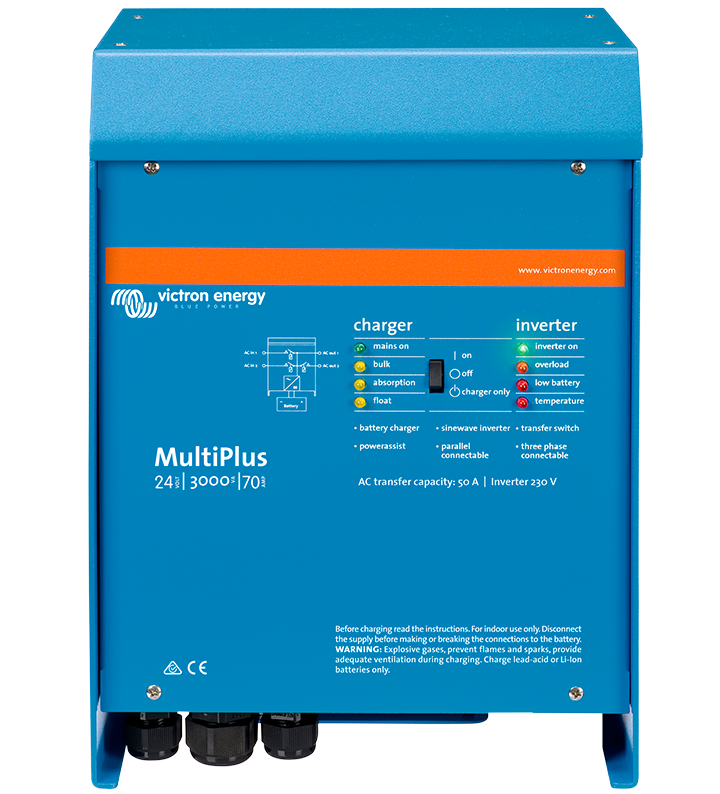

The MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel, you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the “surplus” of energy for charging.
This protects the generator or grid from an overload.
PowerAssist – performance-increase of generators and shore power connection
With this function, PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occur only within limited periods. In this case, the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power.
BackUp-System: AC-power also during blackouts
The MultiPlus can be integrated into off-grid systems, grid-tied PV-systems, and systems using alternative energy sources. A software that detects blackouts and grid failures are also available.
Easy configuration
If the setting of a device has to be changed this can be done with help of a DIP-switch within minutes.
Parallel-connected and three-phase systems can be configured via VE. Bus QuickConfigure and VE.Bus System Configurator software.
Monitoring and controlling on-site
There are several options: battery protector, Multi-Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook, or computer (USB or RS232).
Remote monitoring and controlling
Victron Ethernet Remote, Victron Global Remote, and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Additionally system data can be saved for free on the VRM (Victron Remote Management) website.
Remote configuration
If the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely.
